The Underground Challenge
Deploying fiber optic cable underground in urban environments is expensive, disruptive, and politically sensitive. Traditional trenching closes streets, blocks businesses, annoys residents, and can cost $50-200 per meter in urban areas.
Air-blown fiber technology — installing microducts and then blowing lightweight microcables through them with compressed air — addresses many of these pain points. But is it right for every project?
How Air-Blown Fiber Works
The process has two phases:
Phase 1: Microduct Installation
Small-diameter HDPE ducts (typically 7-16mm OD) are installed underground using one of several methods:
- Micro-trenching: A narrow cut (2-5cm wide, 15-30cm deep) in the road surface, filled immediately after duct placement. Cost: $15-40/meter.
- Directional drilling: No surface disruption. Ducts pulled through underground boreholes. Cost: $30-80/meter.
- Existing duct sub-ducting: Microducts pulled through existing larger conduits. Cost: $5-15/meter.
Multiple microducts (typically 2-7) are bundled together in a single installation, each capable of carrying a future cable.
Phase 2: Cable Blowing
When fiber is needed, a microcable is blown through the duct using high-pressure compressed air. The air both propels the cable and creates an air cushion that centers the cable in the duct, minimizing friction. A single blowing operation can cover 1000-2000+ meters.
Comparison: Air-Blown vs Traditional
| Aspect | Air-Blown Microcable | Traditional Cable Pulling |
|---|---|---|
| Single installation distance | 1000-2000m+ | 300-500m (limited by pulling tension) |
| Civil works disruption | Minimal (micro-trench or drill) | Major (full trench 30-60cm wide) |
| Installation cost per meter | $15-40 | $50-200 |
| Installation speed | 200-500m/day | 50-100m/day |
| Future upgrade | Blow out old, blow in new. No digging. | Replace entirely. New trench. |
| Fiber count per cable | Up to 288 | Up to 288 |
| Mechanical stress on fiber | None (floating on air) | Tensile and bending stress during pull |
| Route flexibility | Handles bends well | Limited by pulling tension on curves |
| Initial empty duct cost | $3-8/meter | N/A (cable installed immediately) |
| Best for | Urban, future-proof, phased build | Greenfield, single-build, rural |
The Killer Feature: Future-Proofing
The most compelling advantage of air-blown fiber is not the initial installation savings — it’s what happens 5, 10, or 20 years later.
Scenario: 10 Years After Deployment
Traditional cable network: Your 24-fiber cable installed in 2016 is now at capacity. To upgrade to 144 fibers, you must:
- Obtain new permits
- Close streets again
- Dig new trenches or attempt to pull through old ducts
- Spend 60-80% of the original installation cost
- Deal with public frustration about “digging up the roads again”
Air-blown network: The microducts are already in place.
- Attach compressor to duct access point
- Blow old cable out (5-15 minutes per 1000m)
- Blow new, higher-fiber-count cable in (10-30 minutes per 1000m)
- Total cost: 5-15% of new trench installation
- Zero surface disruption
This “install once, upgrade forever” capability transforms the total cost of ownership equation. Over a 20-year network lifecycle, air-blown fiber can reduce TCO by 40-60% compared to traditional methods.
When Air-Blown Fiber Makes Sense
Ideal Use Cases:
- Urban FTTH deployments where street disruption costs are high
- 5G fronthaul/backhaul where fiber counts will grow rapidly
- Smart city networks with evolving bandwidth requirements
- Campus and business park networks where future expansions are likely
- City-wide fiber-to-the-antenna for small cell deployments
Less Suitable:
- Rural long-haul routes with no foreseeable capacity upgrades (fewer intermediate access points needed)
- Emergency/temporary deployments where speed of initial installation trumps future-proofing
- Projects with uncertain future ownership (the future-proofing value accrues to the long-term operator)
Key Technical Considerations
Fill Ratio
The cable’s cross-sectional area should be 60-70% of the duct’s internal cross-sectional area. Too small → cable flutters during blowing, reducing distance. Too large → excessive friction, also reducing distance.
Duct Integrity
Microducts must maintain a continuous, smooth inner surface. Kinks, crushed sections, or debris inside the duct will stop a blowing operation. Quality installation and post-installation pressure testing are essential.
Cable Design

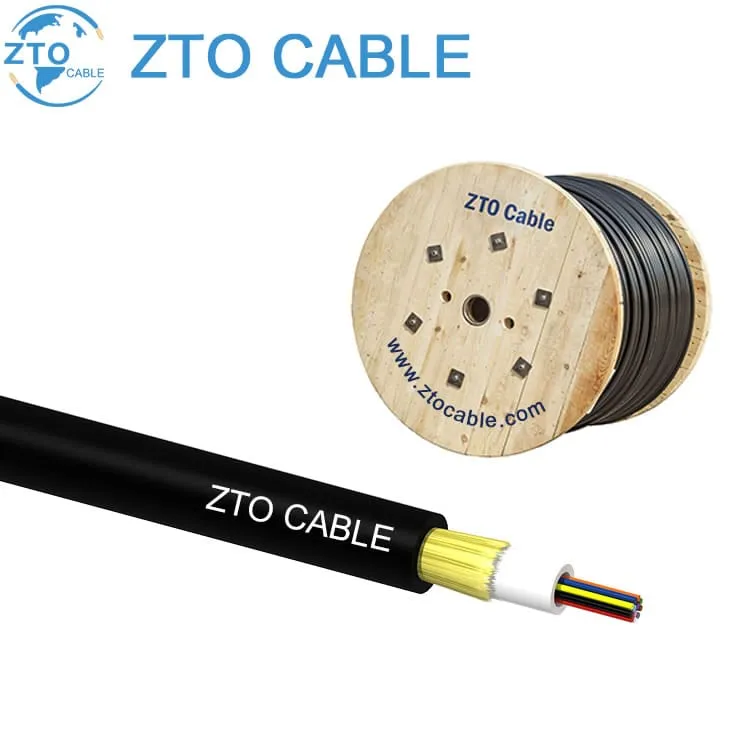

Air-blown cables (GCYFXTY, EPFU) differ from standard cables:
- Low-friction outer sheath: Ribbed or corrugated surface reduces contact area with duct wall
- Lightweight construction: Less mass means longer blowing distances
- High stiffness-to-weight ratio: Prevents buckling during blowing
Access Points
Even though blowing can cover 1000-2000m in a single run, access points (handholes or cabinets) should be spaced every 500-800m for:
- Mid-span cable storage (service loops)
- Future branching (drop connections)
- Maintenance access
EPFU: The Fiber Unit Inside

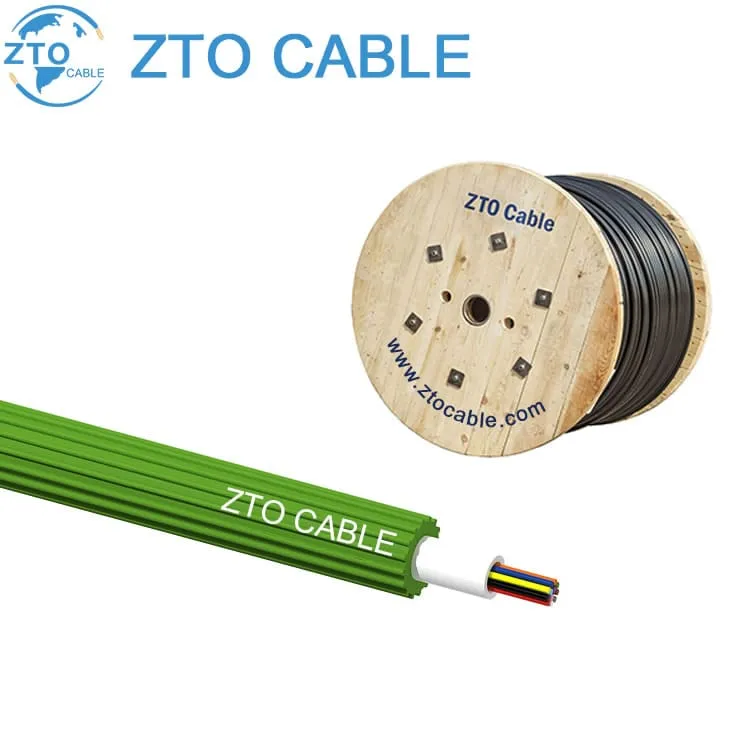

EPFU (Enhanced Performance Fiber Unit) is a sub-component used inside larger microduct bundles. It contains 1-24 fibers in a thin, flexible tube designed specifically for air-blowing into microducts already occupied by other EPFUs.
This enables a “pay as you grow” model: start with 12 fibers in a duct that can hold 144, and add more EPFUs as demand grows — all without disrupting active services.
Real-World Economics
Let’s compare deployment costs for a 5km urban fiber route:
Traditional Cable Pulling:
- Trenching: 5000m × $100/m = $500,000
- Cable: 5000m × $3/m = $15,000
- Splicing & termination: $8,000
- Traffic management: $15,000
- Initial total: $538,000
- Upgrade cost (Year 10): $350,000 (re-trenching)
- 20-year total: $888,000
Air-Blown Microduct:
- Micro-trenching: 5000m × $30/m = $150,000
- 4-way microduct bundle: 5000m × $5/m = $25,000
- Initial cable blow: 5000m × $2/m = $10,000
- Splicing & termination: $8,000
- Traffic management: $5,000
- Initial total: $198,000
- Upgrade cost (Year 10): $12,000 (blow out/in)
- 20-year total: $210,000
Savings: 76% over 20 years. Even if the initial installation was the same cost, the upgrade savings alone justify the microduct approach for any network that expects to grow.
Frequently Asked Questions
Is air-blown fiber reliable in harsh weather?
Yes. Once the microcable is blown into the underground microduct, it is protected from weather, UV, and physical damage exactly like any underground fiber cable. The microducts are HDPE (high-density polyethylene), the same material used for traditional telecom ducts, rated for 50+ year underground service life.
Can air-blown fiber be used for long-haul backbone networks?
Air-blown microcable is primarily designed for access and metro networks (up to 5-10 km per blowing segment). For long-haul backbone (>50 km), traditional high-fiber-count loose tube cables in larger ducts are more economical due to the higher fiber counts and fewer splices required. However, microducts are increasingly used for metropolitan backbone rings.
What happens if a microduct gets blocked or crushed?
Microducts are designed with crush resistance exceeding 400N/100mm and can withstand typical backfill loads. If a duct is severely damaged (construction accident, third-party dig), the affected duct segment is located via OTDR or duct integrity testing, excavated, and a splice point or replacement duct section is installed. The remaining ducts in the bundle usually remain intact.
How do you find a fault in an air-blown fiber network?
Standard OTDR (Optical Time Domain Reflectometer) testing locates breaks or loss events just as with any fiber network. Additionally, microduct integrity can be tested by pressurizing the duct with air and measuring pressure drop over time. Most operators also install tracer wire alongside microduct bundles for precise locating with electromagnetic detection equipment.
Conclusion
Air-blown fiber is not a niche technology — it’s becoming the default approach for urban fiber deployment worldwide. Cities from Amsterdam to Singapore to Dubai are mandating microduct infrastructure in new developments.
The question is no longer “should we use microducts?” but “how many ducts should we install?” The marginal cost of adding extra empty ducts during initial installation is tiny compared to the cost of digging again later. Our recommendation: always install at least 3x the microducts you think you’ll need. The extra capacity will cost pennies per meter now and save dollars per meter later.
